Plus 5 pc pos
PC POS Plus 5 - Image 2
PC POS Plus 5 - Image 3
PC POS Plus 5 - Image 4
PC POS Plus 5 - Image 5

PC POS Plus 5

Power, design, and convenience for your business

The PC POS Plus 5 combines power and convenience with an elegant black design, a 15.6" HD touchscreen that tilts up to 90°, and a rack-mounted motherboard for quick upgrades. Perfect for efficient transaction management, it delivers high performance and simplified maintenance for any commercial activity.

SKU: PRPCPL064
REQUEST INFORMATION
CODICE PLURISERVICE: PRPCPL064
Retail

Description PC POS Plus 5

Power and style in one solution

The new Plus 5 is equipped with all the features and processing performance needed to manage a successful business. The rack-mountable motherboard provides easy maintenance and upgrades, ensuring minimal downtime and maximum scalability. With its elegant black design and 15.6” high-definition 1920×1080 (16:9) touchscreen, it offers an exceptional visual experience, enhanced by a stand that allows the monitor to tilt up to 90°. Ideal for any commercial environment, the PC POS Plus 5 combines design, power, and convenience for efficient and modern transaction management.

REQUEST INFORMATION

Technical specifications PC POS Plus 5

Dimensions:

  • Base: 250 mm × 250 mm

  • Main monitor: 365 mm × 225 mm

  • Secondary monitor: 245 mm × 170 mm

  • Max height (Single Screen POS): 320 mm

  • Max height (Dual Screen POS): 370 mm

Display:

  • 15.6” TFT Display with Capacitive Touch

  • Resolution: 1920×1080 px – 16:9

Processor:

  • Intel® Core™ i5‑7300U

Memory & Storage:

  • RAM: 8 GB

  • System storage: 256 GB SSD

Operating System:

  • Windows 11 pre-installed

Second display (optional):

  • 10.1” LCD Customer Display

Power Supply:

  • Adapter: 12V, 5A / 24V, 6.35A

Audio:

  • Speakers: 2 × 2W

Interfaces:

  • 4 × USB 3.0

  • 1 × Gigabit Ethernet, RJ‑45

  • 2 × COM ports

  • 1 × RJ‑11 (integrated GPIO circuit)

  • 1 × Line out

  • 1 × Audio I/O

Other peripherals (optional):

  • NFC/MSR card reader

Connectivity:

  • Wi‑Fi 2.4G / 802.11 a/b/g/n

  • Bluetooth 4.0 / 4.2

Environmental conditions:

  • Operating temperature: –20 °C ~ 60 °C, 10% to 90% humidity

  • Storage temperature: –20 °C ~ 80 °C, 10% to 90% humidity

Weight:

  • Net weight: 6.5 Kg

  • Gross weight: 7.5 Kg

Physical Features:

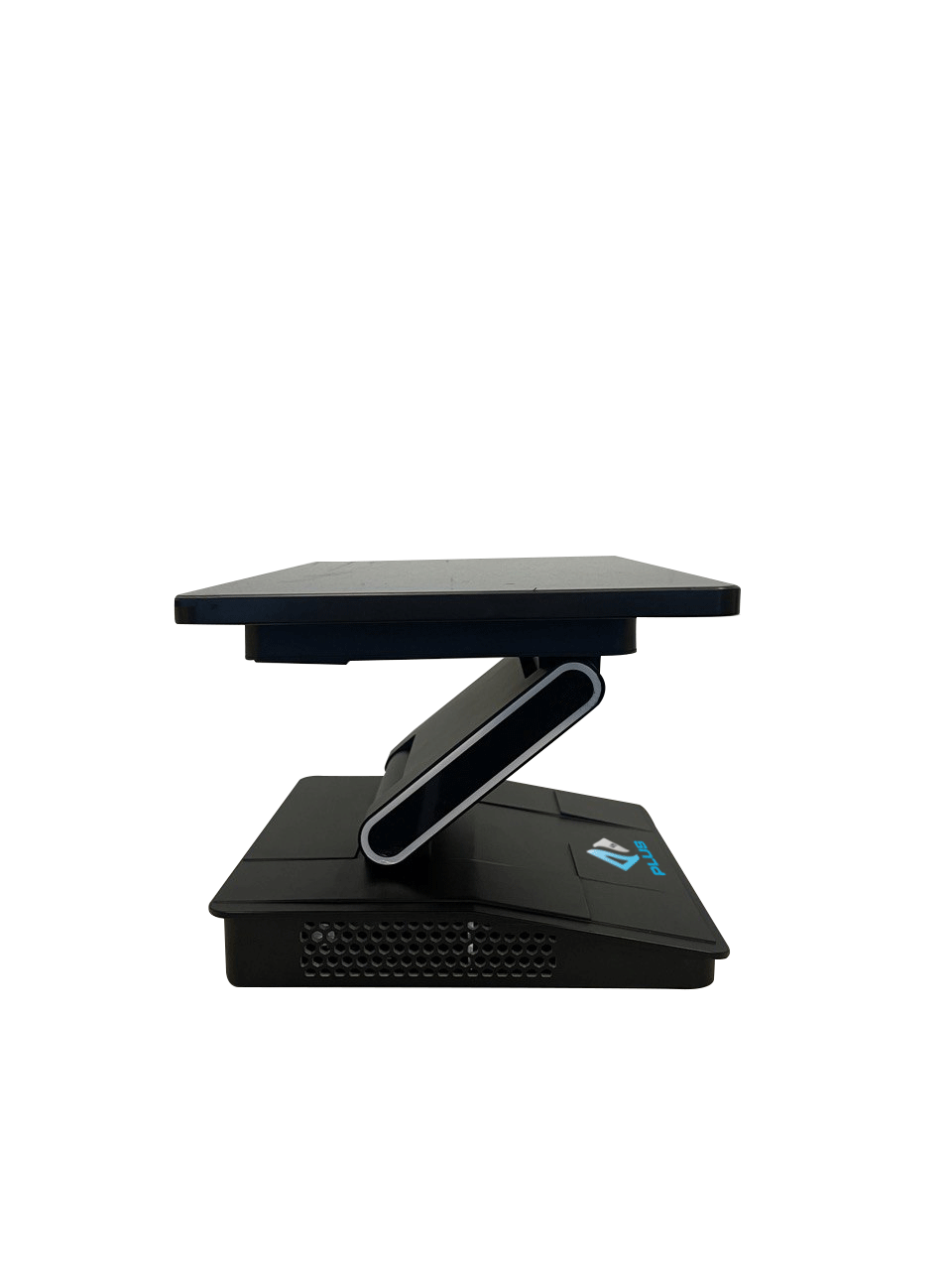

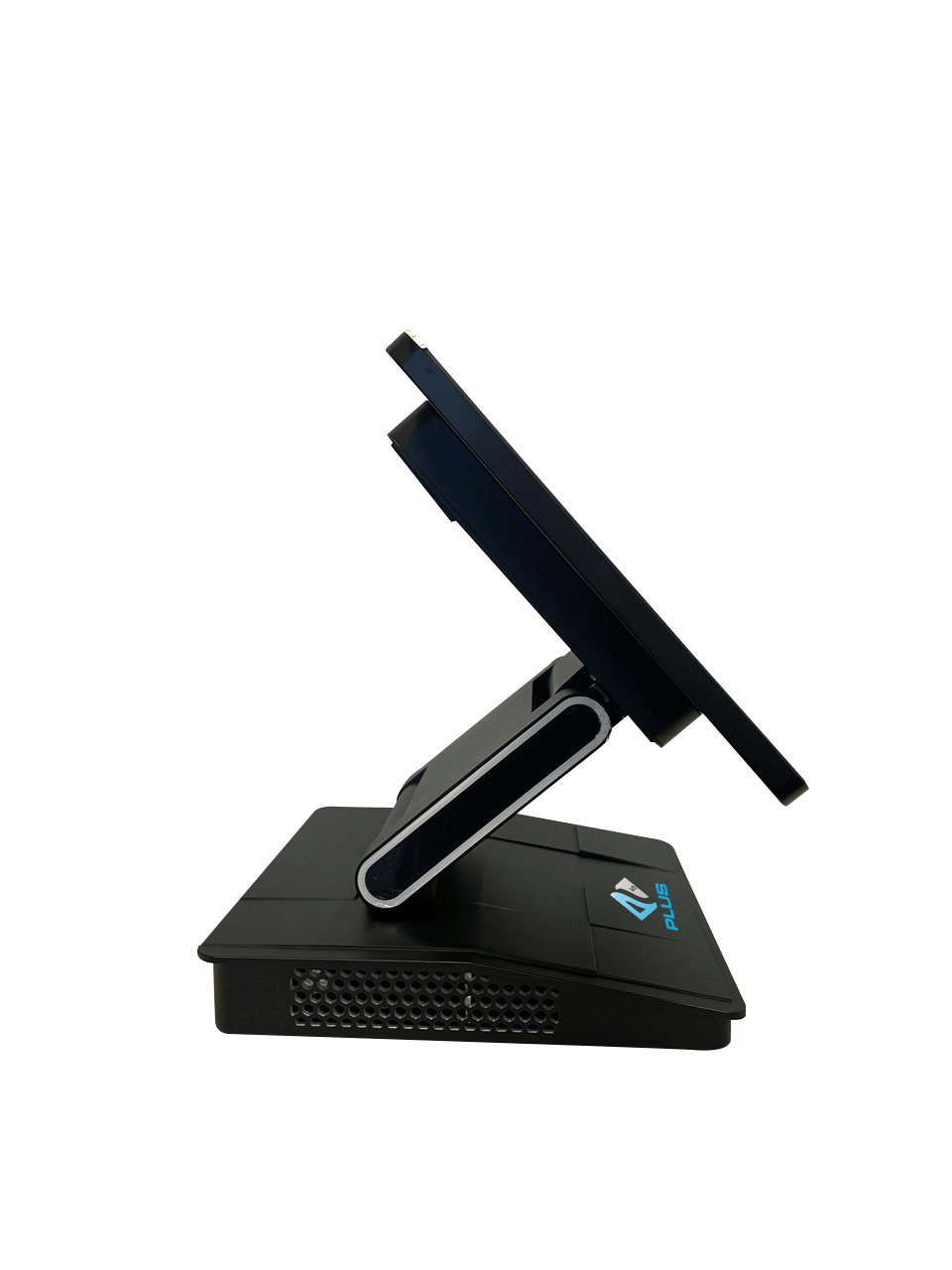

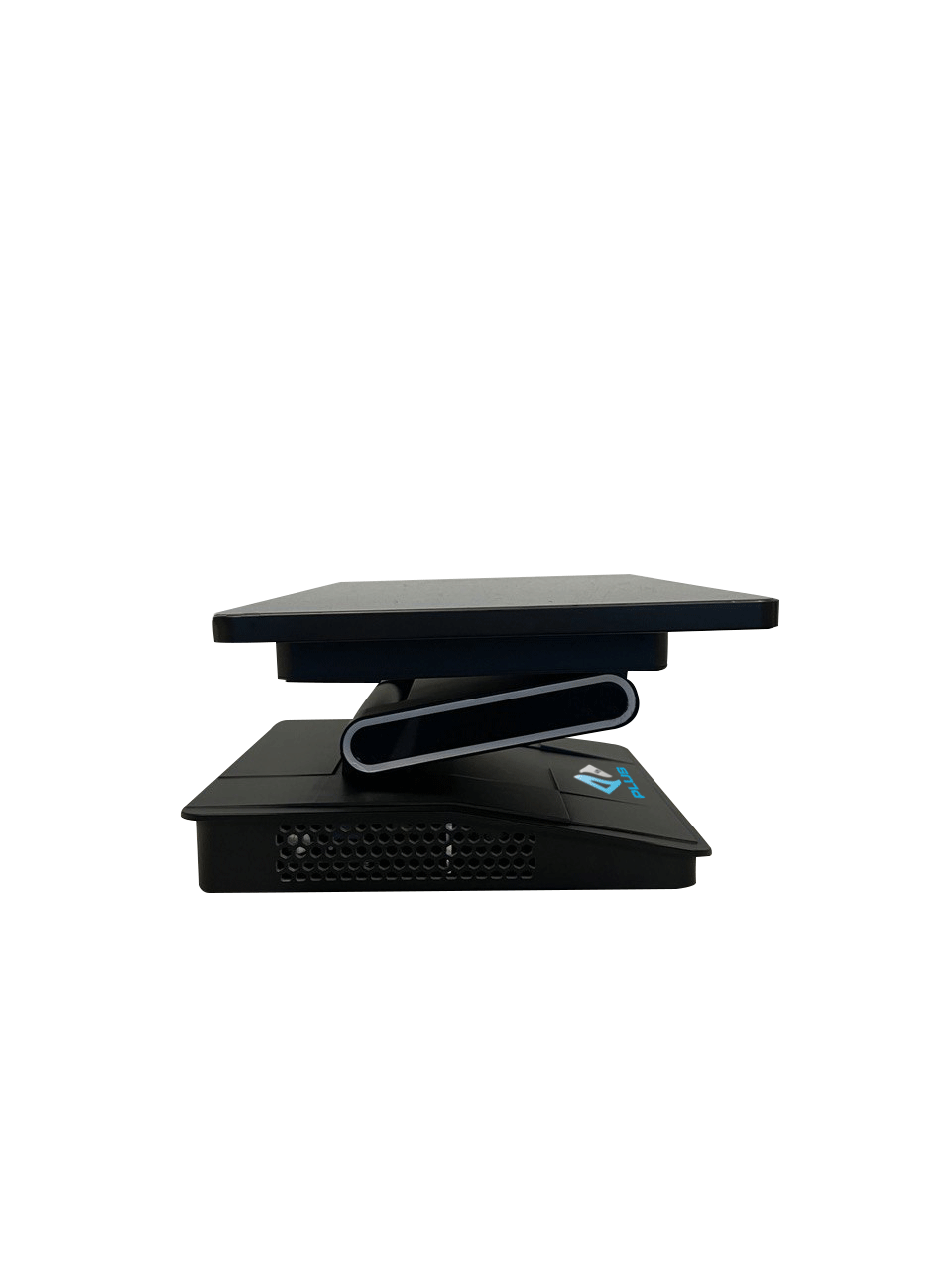

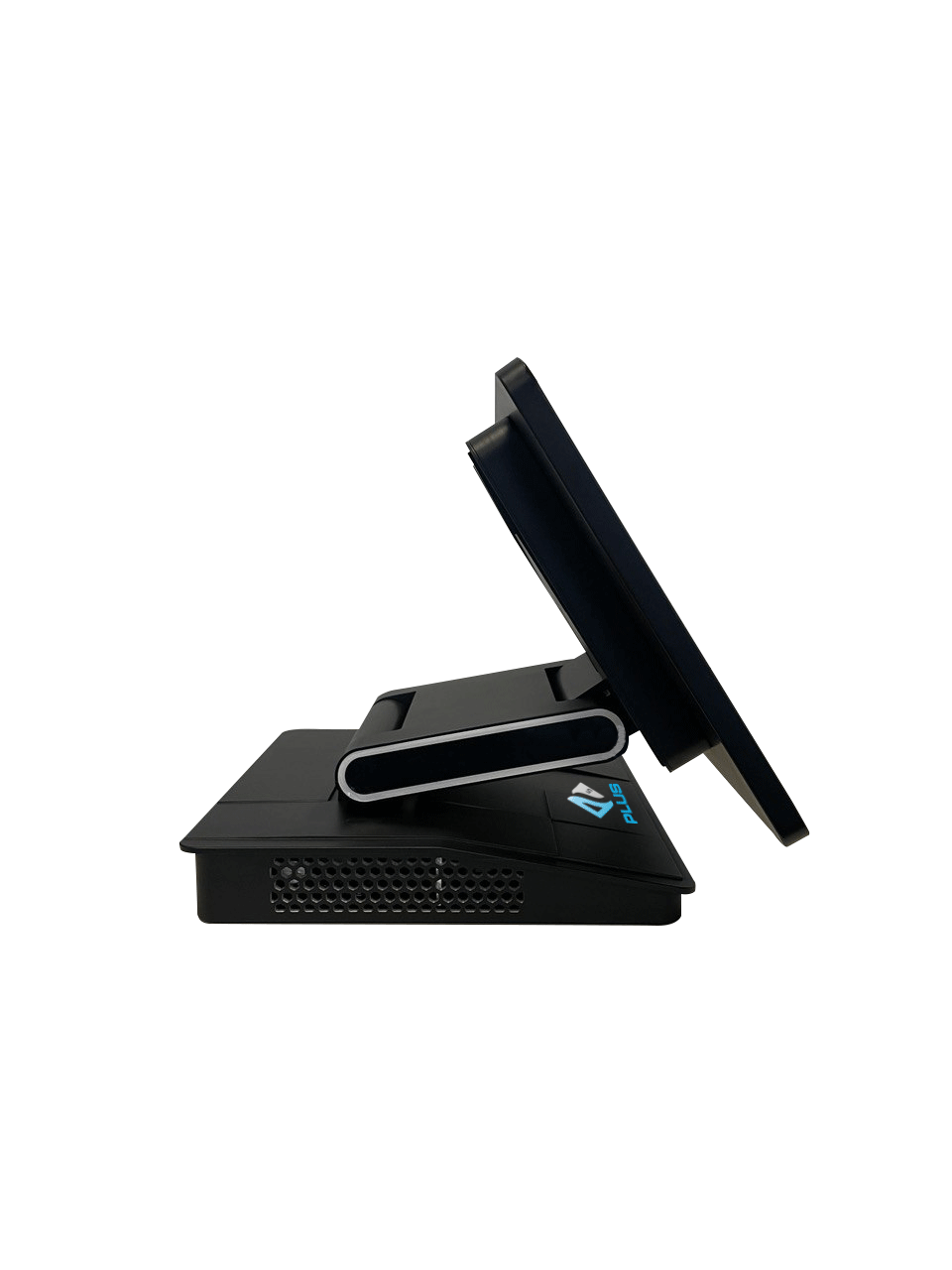

  • Z-shaped stand allows the monitor to tilt up to 90°

  • LED lights on the sides of the stand
